Test equipment PIM instrument

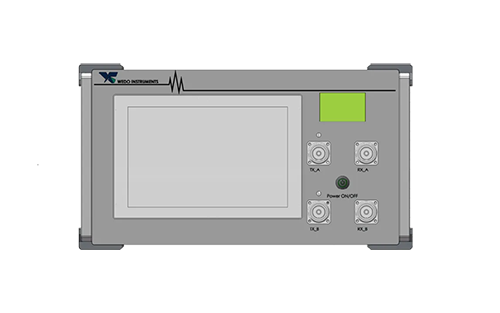

Intermodulation Test Instrument 4 Port Device

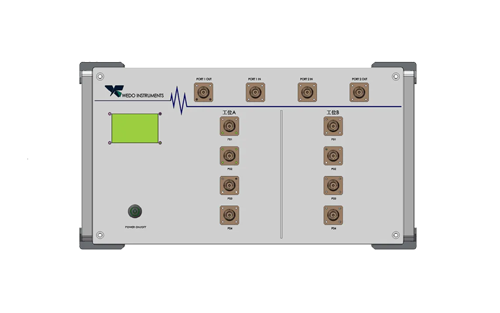

Network Analysis Instrument One to Two Expansion Device

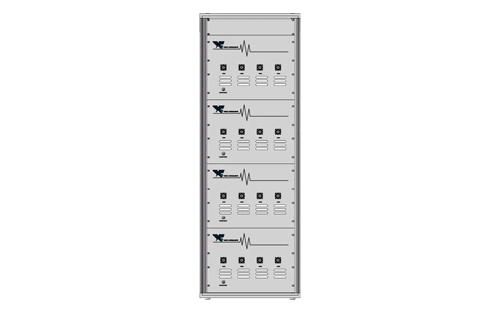

16-32 Port Parallel Testing PIM Analyzer

Feature

A precision passive intermodulation (PIM) analyzer used in production and laboratories, with extremely high PIM sensitivity, capable of measuring intermodulation products IM2/3/5/7/9.
Measurement modes: Time varying PIM and frequency varying PIM. Forward and reverse or bidirectional PIM.
All ports simultaneously perform cross band scanning passive intermodulation (PIM).
16 or 32 port parallel measurement supports full duplex MIMO.

Model	ETSI	Tx (MHz)	Rx (MHz)
WDIM-0300A-02	TETRA300	330-360	370-390
WDIM-0400A-02	TETRA400	460-470	450-455.75
WDIM-0600A-02	LTE600	617-652	663-698
WDIM-0700A-02	LTE700-L/B12+17	728-764	698-716
WDIM-0700B-02	LTE700-U/B13+14	728-764	776-798
WDIM-0700C-02	APT700/B28	758-803	703-748
WDIM-0700D-02	DigDiv800/B20	790-821	832-862
WDIM-0700E-02	LTE700LH	745-793	698-730
WDIM-0800A-02	AMPS850/B5	869-894	824-851
WDIM-0900A-02	EGSM900/B8	925-960	880-915
WDIM-1400A-02	LTE1400/B11+21	1475.9-1510.9	1427.9-1462.9
WDIM-1800A-02	DCS1800/B3	1805-1880	1710-1785
WDIM-1900A-02	PCS/AWS1900/B2+4	1930-2155	1710-1910
WDIM-2100A-02	UMTS2100/B1	2110-2170	1920-2080
WDIM-2300A-02	WCS/B30	2345-2360	2305-2335
WDIM -2600A-02	LTEⅡ2600/B7	2620-2695	2445-2590
WDIM -3500A-02	LTE3500	3510-3594	3410-3490

ALL-IN-ONE switch

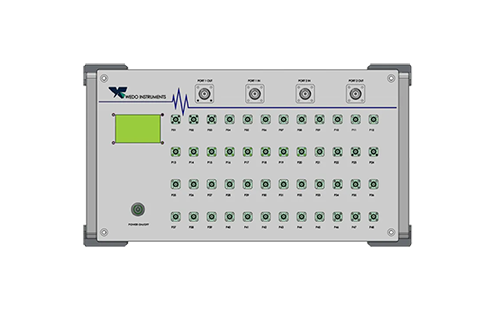

High Speed Testing of 48 Port Full Matrix Switch

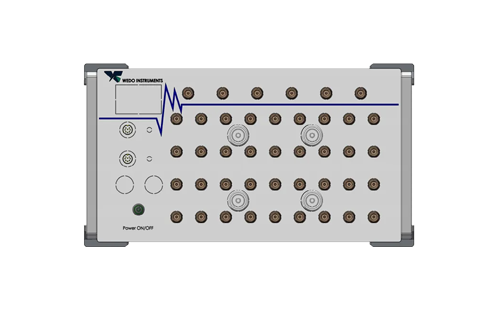

PIM S Testing ALL IN ONE
